SSimder SD-4050 Pro 10-in-1 Aluminum MIG Welder Plasma Cutter Combo
Tax included
Shipping calculated at checkout
Description
The Simder Welder SD-4050 Pro is a 200A 10-in-1 multiprocess welder and plasma cutter that welds aluminum with Pulse MIG, runs HF TIG for precision work, handles stick for thick steel, and cuts metal with 50A Pilot Arc plasma. It runs on both 110V and 220V household power, so one machine replaces a MIG welder, TIG welder, stick welder, and plasma cutter in your garage. Aluminum welding without buying a separate spool gun is the key advantage over standard MIG machines in this price range.
At a Glance
| Processes | 10-in-1: Pulse MIG, Synergic MIG, Mixed Gas MIG, CO₂ MIG, Flux Core, HF TIG, Stick, Pilot Arc Plasma Cut |
| Max Output | 200A (MIG/TIG), 180A (Stick), 50A (Cut) |
| Voltage | Dual 110V / 220V |
| Aluminum | Yes — Pulse MIG (no spool gun needed) |
| Cutting | Yes — Pilot Arc plasma, 50A |
| MIG Wire | 0.8 / 0.9 / 1.0 / 1.2 mm, spool 0.5–10 lb |
| Adjustable | Inductance, Burnback, 2T/4T/SPOT, Hot Start, Anti-Stick, VRD, gas pre/post flow |
| Included Torches | 15AK MIG gun, WP17 TIG torch, AG60 plasma torch, stick holder, ground clamp |
Built For
- Home garage DIY — one machine does MIG, TIG, stick, and cutting; no separate purchases
- Auto body repair — Pulse MIG welds aluminum panels cleanly, 200A for heavier work
- Farm & ranch maintenance — flux core for outdoor windy days, stick for rusty thick steel
- First-time buyers — Synergic MIG presets and 2T/4T simplify learning
- Not for industrial production lines — duty cycle is DIY/prosumer grade, not 24/7 factory
- Not for thick aluminum over 1/4 in. — for heavy structural aluminum, a dedicated AC/DC TIG is the better tool
Key Technical Features
Can it weld aluminum with Pulse MIG?
Yes. Pulse MIG mode (200A) feeds aluminum wire smoothly with a graphite liner and aluminum contact tips included in the box — no spool gun purchase required. Handles aluminum-magnesium and aluminum-silicon alloys.
Why is 10-in-1 better than buying separate machines?
One machine replaces a MIG welder, TIG welder, stick welder, and plasma cutter. Four tools would cost 3–4× more and take up four garage spots; the SD-4050 Pro covers MIG, TIG, Stick, and Plasma in one 200A unit on 110V or 220V.
How precise is HF TIG on thin metal?
HF (high-frequency) TIG starts without touching the workpiece, so thin stainless, titanium, and aluminum sheet don't get tungsten contamination. Lift-start TIG machines can't match this on delicate work.

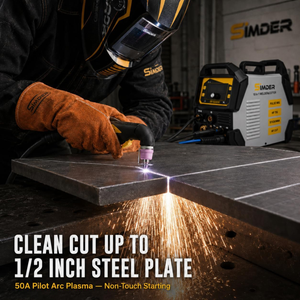

Does it cut metal with Pilot Arc plasma?
Yes — 50A Pilot Arc starts the arc without touching the nozzle to the workpiece, which extends consumable life and makes cutting painted or rusty steel easier. A CUT air divider is included.
What safety features protect the user?
Stick mode includes Hot Start, Anti-Stick, and VRD (voltage reduction device) — VRD cuts output voltage when not welding, reducing shock risk — plus gas pre-flow and post-flow controls.
Full Specifications
| Model | SD-4050 Pro |
| Input Voltage | 110V / 220V dual |
| MIG Current Range | Up to 200A |
| TIG Current Range | Up to 200A (HF) |
| Stick Current Range | Up to 180A |
| Plasma Cut Current | 50A |
| Welding Processes | Pulse MIG / Synergic MIG / Mixed Gas / CO₂ / Flux Core / HF TIG / Stick / Plasma |
| Weldable Metals | Aluminum (Mg/Si alloys), stainless, carbon steel, low-alloy steel, copper, titanium (thin), cast iron (stick) |
| MIG Wire Sizes | 0.8 / 0.9 / 1.0 / 1.2 mm |

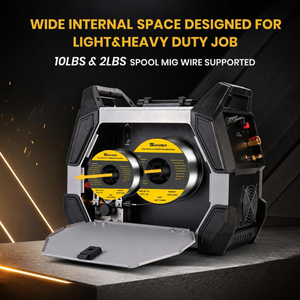

| Wire Spool | 0.5–10 lb |

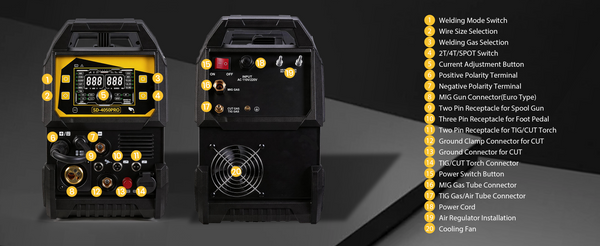

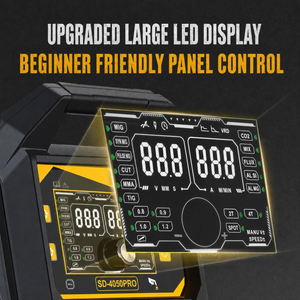

| Controls | Inductance, Burnback, 2T/4T/SPOT, Hot Start, Anti-Stick, VRD, gas pre/post flow |
| Included Torches | 15AK MIG gun, WP17 TIG torch, AG60 plasma torch, stick holder, ground clamp |
| Feed Rollers | 3 (gas MIG, flux core, aluminum) |
| Extras | Graphite liner, aluminum contact tips, gas hose, clamps, 220V adapter |
How It Compares
| SD-4050 Pro | SD-4050 Mini (3-in-1) | Typical single-process MIG | |
| Processes | 10-in-1 (MIG+TIG+Stick+Plasma) | 3-in-1 MIG | MIG only |
| Aluminum welding | Yes — Pulse MIG | No | No |
| Plasma cutting | Yes — 50A Pilot Arc | No | No |
| Max output | 200A | 140A | 100–140A |
| Dual voltage | Yes — 110V/220V | Yes | Varies |
| Best for | Everything in one box | Portability, light work | Simple MIG tasks |
Real-World Use Cases
Welding an aluminum trailer or boat repair?
Switch to Pulse MIG with the graphite liner and aluminum wire. The 200A output and spot-tack option let you tack panels in position, then weld a clean bead without burning through thin sheet.
Cutting rusty steel in the garage?
Use the AG60 plasma torch with the included air divider. Pilot Arc starts on painted or rusty surfaces, and 50A cuts through common home-garage steel thicknesses faster than a grinder.
Teaching yourself to weld for the first time?
Start with Synergic MIG presets and flux-core wire — no gas tank needed. The 2T/4T switch keeps the wire feeding steady while you learn to control travel speed.
Frequently Asked Questions
Can the SD-4050 Pro weld aluminum?
Yes. Pulse MIG mode feeds aluminum wire with the included graphite liner and aluminum tips — no spool gun needed. Works with aluminum-magnesium and aluminum-silicon alloys up to 200A.
Do I need a spool gun for aluminum?
No. The included graphite liner and aluminum contact tips handle aluminum wire in Pulse MIG mode. A spool gun (sold separately) is an option for extra-heavy use.
What voltage does it run on?
Both 110V and 220V household outlets. A 220V adapter plug is included. On 110V output is lower, which is fine for most home-garage work.
Can it really cut metal?
Yes — 50A Pilot Arc plasma cutting. Pilot Arc starts without touching the workpiece, so it cuts painted and rusty steel and extends consumable life.
What's the difference between Pulse MIG and regular MIG?
Pulse MIG alternates high and low current, giving better control on aluminum and thin material with less spatter. Regular MIG (CO2, mixed gas) is for steel at lower cost.
Is it good for beginners?
Yes. Synergic presets, 2T/4T, and flux-core capability (no gas tank) make it approachable, while 200A output, HF TIG, and VRD leave room to grow into advanced work.
What is included in the box?
15AK MIG gun, WP17 TIG torch, AG60 plasma torch, stick holder, ground clamp, 3 feed rollers, graphite liner, aluminum tips, gas hose, clamps, and 220V adapter.
What wire sizes does it accept?
0.8, 0.9, 1.0, and 1.2 mm flux-core, solid, and aluminum wire, on spools from 0.5 to 10 lb.

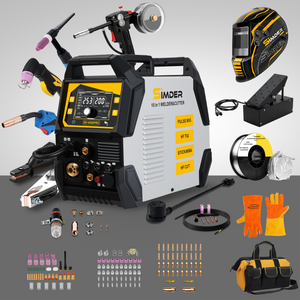

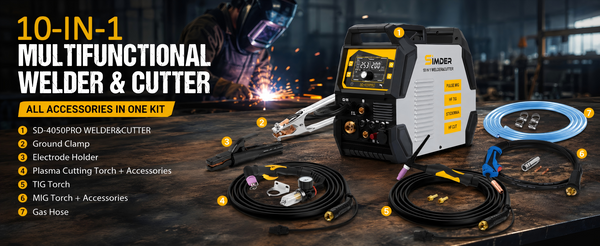

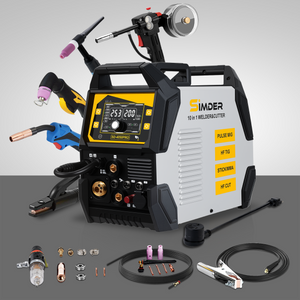

In The Box
- 15AK MIG welding gun
- WP17 TIG torch
- AG60 plasma cutting torch
- Stick electrode holder + ground clamp
- 3 feed rollers (gas MIG / flux core / aluminum)
- Graphite liner for aluminum wire
- MIG aluminum contact tips
- Gas hose + hose clamps
- CUT air divider
- 220V adapter plug
Pulse MIG Welding
Flux Core Welding
HF TIG Welding
Pilot ARC Plasma Cutting
Stick Welding
